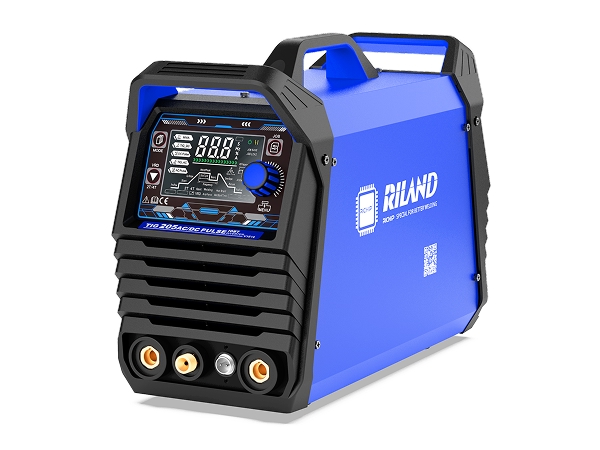

TIG 205AC/DC PULSE X
AC/DC TIG/MMA Welder
- Built with RILAND self-developed RICHIP control chip and the latest high-end IGBT inverter technology.
- Multi-process design supports DC TIG, AC TIG, and MMA stick welding.
- Adjustable welding current and post-flow gas time provide greater control over weld bead formation.
- 2T/4T trigger modes support both continuous welding and controlled operation, helping reduce finger fatigue during long welding tasks.
- Fully digital pulse control allows adjustment of start current, peak current, base current, and pulse frequency.
- Adjustable pulse frequency helps create different fish-scale/stacked-dime weld bead appearances for specific process requirements.
- Adjustable up-slope and down-slope time support smoother weld starting and finishing.
- Adjustable pulse duty cycle, cleaning width, and post-flow gas time provide flexible control over the welding process.
- Segmented LCD display makes parameter viewing and adjustment more intuitive.
| Item | |
| Input power (V) | 1P/AC 230 ±15% |
| Frequency (Hz) | 50/60 |
| Open-circuit voltage (V) | 63 |
| Rated input current (A) | 30.7 (TIG DC) 26.7 (TIG AC) 43.8 (MMA) |
| Rated input power capacity (kVA) | 7.68 (TIG DC) 7.68 (TIG AC) 11.94 (MMA) |
| Output current range (A) | 10-200 (TIG DC) 10-200 (TIG AC) 40-200 (MMA) |
| Duty cycle | 25% (TIG DC) 25% (TIG AC) 13% (MMA) |
| Efficiency | 70% |
| Power factor | 0.67 |
| Protection class | IP23S |
| Insulation class | H |
| Dimensions (L×W×H) (mm) | 415×185×310 |
Ground clamp & cable assembly, 1 set
Electrode holder & cable assembly, 1 set
TIG welding torch, 1pc
Tungsten electrode, 1pc
Welding cable quick connector, 1pc
Gas hose, 1pc
Small metal parts manufacturing
Construction and decoration
Piping installation & repair
Petrochemical & chemical plants
