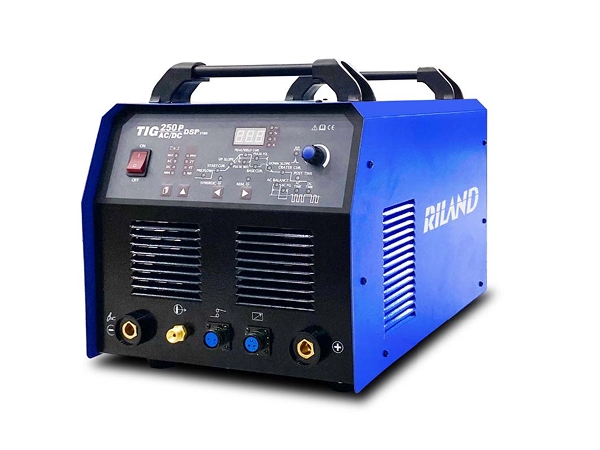

TIG 250PAC/DC DSP
TIG/MMA Welder
- Built with mature MOSFET inverter technology.
- Multi-process design supports TIG and MMA stick welding.
- Adjustable welding current and post-flow gas time provide better control over weld bead formation.
- 2T/4T trigger modes support different welding habits and process requirements.
- Adjustable start current, peak current, and base current help improve arc control and welding performance.
- Adjustable up-slope and down-slope time support smoother weld starting and finishing.
- Adjustable pulse frequency helps create different weld bead appearances for specific welding requirements.
- Pulse duty cycle is adjustable from 10% to 90%, cleaning width is adjustable from 20% to 80%, and post-flow gas time is adjustable from 0 to 10 seconds, giving operators flexible control over the welding process.
- AC cleaning control helps remove the oxide layer on aluminum surfaces while balancing penetration and tungsten electrode consumption.
- Built-in overheating, overcurrent, and overvoltage protection, combined with Class F insulation, supports stable and safe operation.
| Item | |
| Input voltage (V) | 1P AC 220 ±15% |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | 34.9 (TIG) 33.9 (MMA) |
| Output current (A) | 10-10 (TIG) 10-160 (MMA) |
| Duty cycle | 30% |
| No-load voltage (V) | 71 (TIG) 63 (MMA) |
| AC duty cycle | 20-80% |
| Pulse duty cycle | 10-90% |
| Post-flow time (s) | 0-10 |
| Pulse frequency (Hz) | 0.5-5.0 |
| Base current (A) | 10-210 |
| Arc initiation current (A) | 10-210 |
| Remote control | Yes |
| Arc starting method | HF |
| Efficiency | 80% |
| Power factor | 0.73 |
| Insulation class | F |
| Protection rating | IP21 |
| Weight (kg) | 21.5 |
| Dimensions (L×W×H) (mm) | 476×340×402 |
TIG welding torch, 1pc
Ground clamp & cable assembly, 1 set
Tungsten electrode, 1pc
Allen key, 1pc
Welding cable quick connector, 1pc
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG welding torch
TIG welding torch
Electrode holder & cable assembly
TIG back cap
Tungsten electrode
Argon flow meter regulator
Auto-darkening welding helmet
Welding gloves
