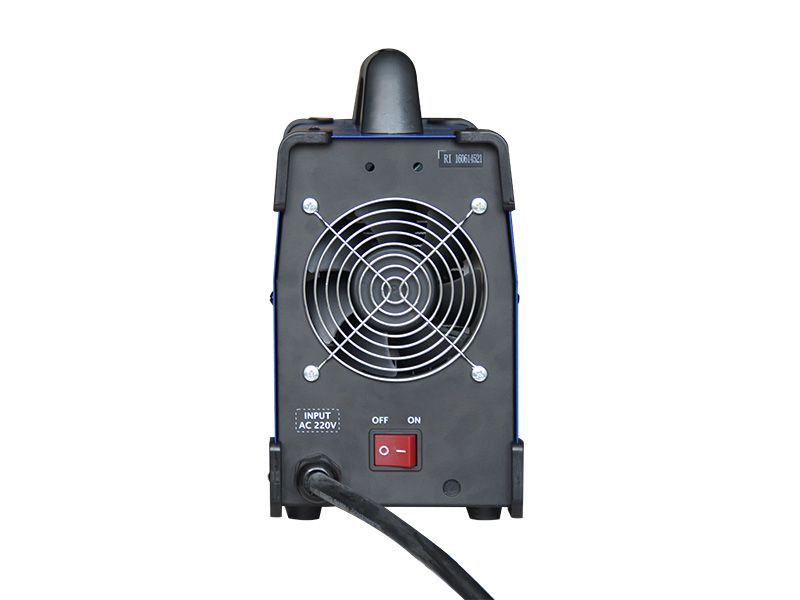

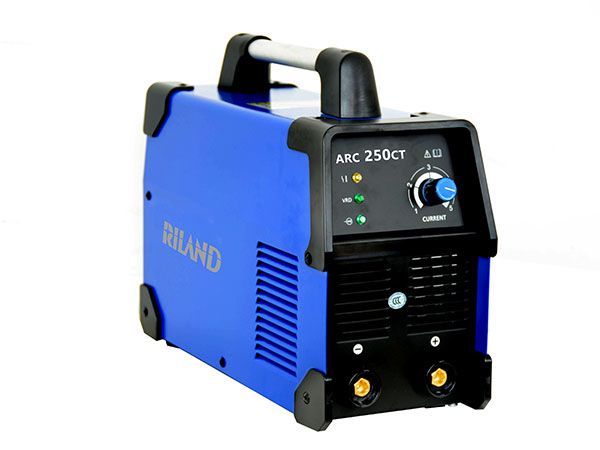

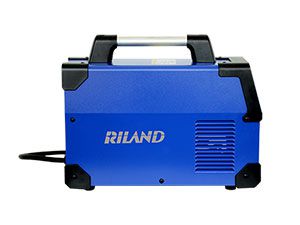

ARC 250CT
ARC MMA Welder / Stick Welder
- Adopting mature MOS inverter technology;
- Corner protectors reduce potential scratches and give a superior look;
- Improved welding performance and arc stability, arc starting at low voltage;
- Sufficient output power, allowing for long-time welding of Ø3.2mm stick electrodes, and can weld stick electrodes of up to Ø4.0mm;
- Long extension cable of up to 20m;
- Compact size, suitable for civil and light fabrication applications;
| Model | |
| Input voltage | 1P/ 220V (±15%) |
| Frequency (Hz) | 50/60Hz |
| Duty cycle (40℃) | 30% |
| No-load voltage (V) | 70V |
| VRD voltage | 18V |
| Current adjusting range (A) | 30-190A |
| Efficiency | 85% |
| Power factor | 0.70 |
| Protection grade | IP21S |
| Insulation class | Class H |
| Anti-shock protection | Class I |
| Electromagnetic Compatibility (EMC) | A |
| Static characteristic | Drooping characteristic |
| Cooling method | Forced air cooling |
| Net weight (kg) | 6.5 |
| Dimensions (L×W×H) (mm) | 365×172×320 |
Welding cable quick connector, 2pcs
Allen key, 1pc
Auto-darkening welding helmet
Electrode holder & cable assembly
Welding gloves
Welding chipping hammer
Ground clamp & cable assembly
Auto-darkening welding helmet
Electrode holder & cable assembly
Welding gloves
Welding chipping hammer
Ground clamp & cable assembly
Auto-darkening welding helmet
Electrode holder & cable assembly
Welding gloves
