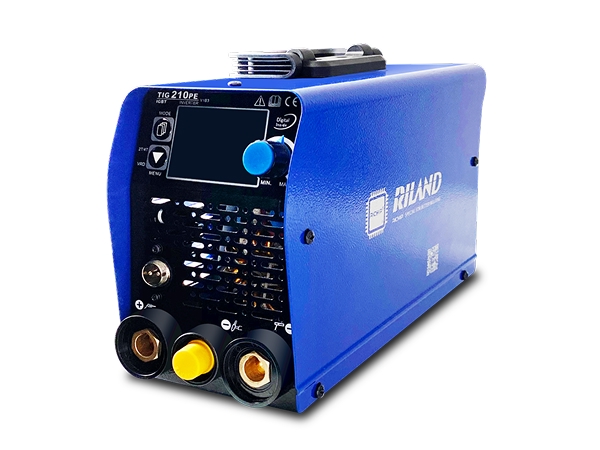

TIG 200PE/ 250PE
TIG/MMA Welder
- Built with RILAND self-developed RICHIP control chip and the latest high-end IGBT inverter technology.
- Supports HF TIG, DC pulse TIG, and MMA stick welding.
- In DC pulse TIG mode, fully adjustable welding waveform parameters allow operators to review and fine-tune settings across the applicable current range.
- In MMA mode, adjustable arc force, VRD, and anti-stick functions help improve arc control and reduce electrode sticking.
- 2T/4T/SPOT modes support long welds, continuous welding, and accurate tack welding.
- Built-in overvoltage, overload, and overheating protection.
- Intelligent fan control runs only when needed, helping reduce noise and internal dust buildup.
| Item | TIG 250PE | |
| Input voltage (V) | 1P 220 ±15% | 1P 220 ±15% |
| Frequency (Hz) | 50/60 | 50/60 |
| Max input current (I1max / A) | 25.8 (TIG) 27.5 (MMA) | 29.5 (TIG) 34.8 (MMA) |
| Max effective input current (I1eff / A) | 10 (TIG) 10.7 (MMA) | 14.8 (TIG) 17.4 (MMA) |
| Rated output current range (A) | 10-180 (TIG) 40-140 (MMA) | 10-210 (TIG) 40-180 (MMA) |
| Rated output voltage range (V) | 10.4-17.2 (TIG) 21.6-25.6 (MMA) | 10.4-18.4 (TIG) 21.6-27.2 (MMA) |
| Duty cycle (40°C) | 25% | 25% |
| No-load voltage (V) | 60 (VRD:16V) | 60 (VRD:16V) |
| Power factor | 0.7 | 0.7 |
| Efficiency | 75% | 75% |
| Arc starting method | HF ignition | HF ignition |
| Insulation class | F | F |
| Enclosure protection rating | IP21 | IP21 |
| Power source weight (kg) | 4 | 4.28 |
| Dimensions (L×W×H) (mm) | 297×128×207 | 297×128×207 |
Ground clamp & cable assembly, 1 set
Electrode holder & cable assembly, 1 set
TIG welding torch, 1pc
Tungsten electrode, 1pc
Gas hose, 1pc
Hose quick connector, 1pc
Small metal parts manufacturing
Construction and decoration
Piping installation & repair
Petrochemical & chemical plants
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG back cap
TIG back cap
Electrode holder & cable assembly
Tungsten electrode
Argon flow meter regulator
Auto-darkening welding helmet
Welding gloves
Digitally controlled TIG welding torch
