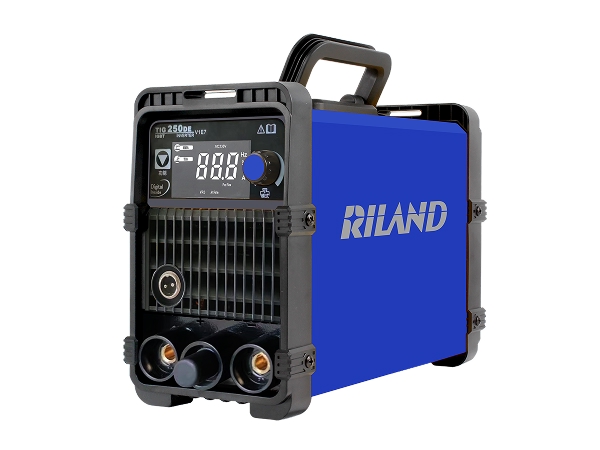

TIG 250DE
TIG/MMA Welder
- Built with RILAND self-developed RICHIP control chip and the latest high-end IGBT inverter technology.
- Wide input voltage range of 220V ±15% for better adaptability to site power conditions.
- Segmented display allows clear welding parameter viewing and adjustment.
- Supports HF TIG and MMA stick welding.
- In MMA mode, VRD, adjustable arc force, and anti-stick functions help improve safety and operating control.
- In TIG mode, adjustable post-flow gas time supports better tungsten protection, with an arc ignition success rate up to 99%.
- Built-in overvoltage, overload, and overheating protection.
- Intelligent fan control runs only when needed, helping reduce noise and internal dust buildup.
- Standby mode, power factor above 0.7, and overall efficiency above 75% support more energy-efficient operation.
- Compact 3.3 kg power source with 304 × 117 × 175 mm dimensions and an adjustable shoulder strap for portable welding in elevated, outdoor, and confined work areas.
| Item | |
| Input voltage (V) | 1P 220 ±15% |
| Frequency (Hz) | 50/60 |
| Max input current (I1max / A) | 27 (TIG) 28.8 (MMA) |
| Max effective input current (I1eff / A) | 10.5 (TIG) 11.2 (MMA) |
| Rated output current range (A) | 10-180 (TIG) 40-140 (MMA) |
| Rated output voltage range (V) | 10.4-17.2 (TIG) 21.6-25.6 (MMA) |
| Duty cycle (40°C) | 15% |
| No-load voltage (V) | 54 (VRD:16V) |
| Power factor | 0.7 |
| Efficiency | 75% |
| Arc starting method | HF ignition |
| Insulation class | F |
| Enclosure protection rating | IP21 |
| Power source weight (kg) | 3.3 |
| Dimensions (L×W×H) (mm) | 304×117×175 |
TIG welding torch, 1pc
Ground clamp & cable assembly, 1 set
Tungsten electrode, 1pc
Allen key, 1pc
Welding cable quick connector, 1pc
Small metal parts manufacturing
Construction and decoration
Piping installation & repair
Petrochemical & chemical plants
QQ 150 tungsten electrode collet
QQ 150 tungsten electrode collet
QQ 150 ceramic cup nozzle
QQ 150 tungsten electrode collet body
Electrode holder & cable assembly
TIG back cap
TIG back cap
Tungsten electrode
Argon flow meter regulator
Auto-darkening welding helmet
Welding gloves
