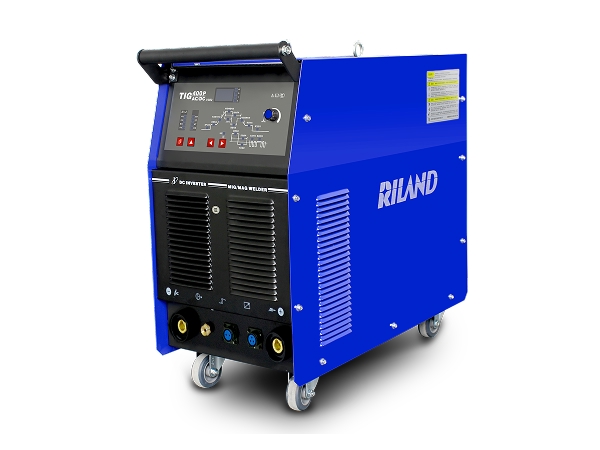

TIG 400PAC/DC DIGITAL
AC/DC TIG/MMA Welder
- Built with mature IGBT inverter technology.
- Multi-process design supports TIG and MMA stick welding.
- Adjustable welding current and post-flow gas time provide better control over weld bead formation.
- 2T/4T trigger modes support different welding habits and application requirements.
- Adjustable start current, peak current, and base current help improve welding performance.
- Adjustable up-slope and down-slope time support smoother weld starting and finishing.
- Pulse frequency is adjustable from 0.5 to 10 Hz, allowing operators to set different weld bead characteristics for specific process requirements.
- Adjustable pulse duty cycle, pulse width, and post-flow gas time provide flexible control over the welding process.
- Built-in overheating, overcurrent, and overvoltage protection, combined with Class H insulation, supports stable operation in demanding industrial use.
| Item | |
| Input voltage (V) | 3P/AC 380 ±15% |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | 22.3 (TIG DC) 20.8 (TIG AC) 20.1 (MMA) |
| Output current (A) | 12-400 (TIG DC) 30-400 (TIG AC) 30-310 (MMA) |
| Duty cycle | 25% (TIG DC) 40% (TIG AC) 60% (MMA) |
| No-load voltage (V) | 60 |
| Rated output voltage (V) | 26 (TIG) 32.4 (MMA) |
| Pulse duty cycle | 10-90% |
| Post-flow time (s) | 0-20 |
| Pulse frequency (Hz) | 0.5-10 |
| Base current (A) | 30-400 (AC) 12-400 (DC) |
| Arc initiation current (A) | 30-400 (AC) 12-400 (DC) |
| Remote control | Yes |
| Arc starting method | HF |
| Efficiency | 92% |
| Power factor | 0.79 |
| Insulation class | H |
| Protection rating | IP21 |
| Weight (kg) | 40 |
| Dimensions (L×W×H) (mm) | 670×320×640 |
TIG welding torch, 1pc
Ground clamp & cable assembly, 1 set
Tungsten electrode, 1pc
Allen key, 1pc
Welding cable quick connector, 1pc
Gas electric quick connector, 2pcs
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG welding torch
TIG welding torch
TIG back cap
Electrode holder & cable assembly
Tungsten electrode
Argon flow meter regulator
Auto-darkening welding helmet
Welding gloves
