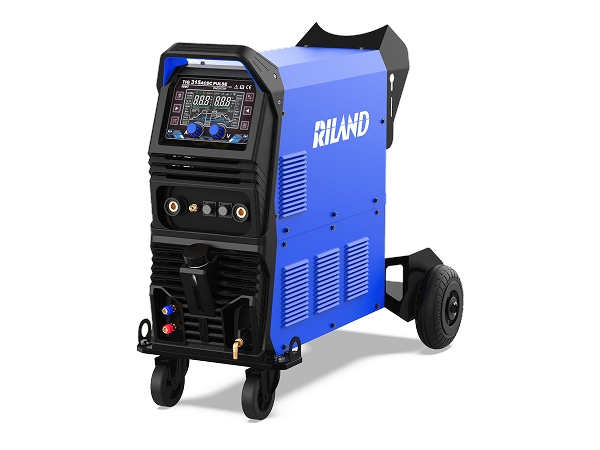

TIG 315AC/DC PULSE
AC/DC TIG/MMA Welder
The TIG 315AC/DC PULSE combines DC TIG, AC TIG, and MMA stick welding in one multi-process welder. With output current up to 315 A in TIG mode and 240 A in MMA mode, it is suitable for high-quality welding of carbon steel, stainless steel, and medium-thickness aluminum plates.
Features- Built with RILAND self-developed RICHIP control chip and the latest high-end IGBT inverter technology.
- Adjustable welding current and post-flow gas time provide better control over weld bead formation.
- 2T/4T trigger modes support different welding habits and process requirements.
- Adjustable start current, peak current, and base current help improve arc control and welding performance.
- Adjustable up-slope and down-slope time support smoother weld starting and finishing.
- Adjustable pulse frequency helps control heat input and produce different weld bead appearances for specific welding requirements.
- Adjustable pulse duty cycle, cleaning width, and post-flow gas time help remove the oxide layer on aluminum surfaces and provide more flexible process control.
- Segmented LCD display allows clear parameter viewing and adjustment.
| Item | |
| Input power (V) | 3P/AC 400±15% |
| Frequency (Hz) | 50/60 |
| Open-circuit voltage (V) | 68 |
| Rated input current (A) | 16.6 (TIG DC) 16.6 (TIG AC) 15.5 (MMA) |
| Rated input power capacity (kVA) | 14.56 (TIG DC) 14.56 (TIG AC) 14.52 (MMA) |
| Output current range (A) | 12-315 (TIG DC) 30-315 (TIG AC) 15-240 (MMA) |
| Duty cycle | 40% (TIG DC) 40% (TIG AC) 60% (MMA) |
| Efficiency | 70% |
| Power factor | 0.67 |
| Protection class | IP23S |
| Insulation class | H |
| Dimensions (L×W×H) (mm) | 915×480×770 |
TIG welding torch, 1pc
Ground clamp & cable assembly, 1 set
Tungsten electrode, 1pc
Allen key, 1pc
Welding cable quick connector, 1pc
Gas electric quick connector, 2pcs
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG welding torch
TIG welding torch
TIG back cap
Electrode holder & cable assembly
Tungsten electrode
Argon flow meter regulator
Auto-darkening welding helmet
Welding gloves
